Product DescriptionCompany Info.<>
- Model:
- Jipad-IVX
- Velocity range:
- 20-230rpm
- Volume:
- syphilis testing
- Working voltage:
- 220V50HZ
- Power:
- 10W
- Overall dimension:
- 320×315×120 mm

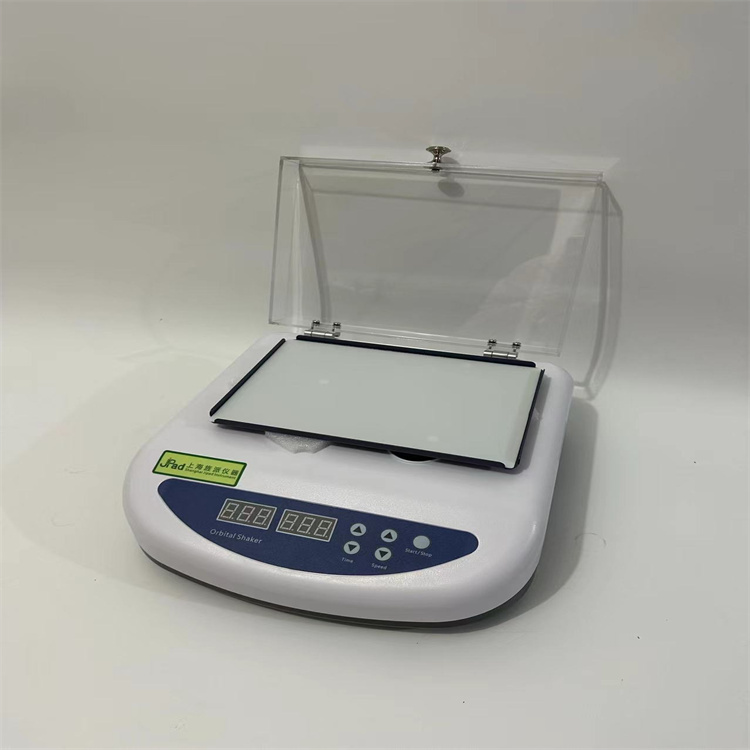

Product Name: Digital Horizontal Mixer
Manufacturer: Shanghai Jingpai Instrument Co., Ltd.
Digital Horizontal MixerProduct Overview:
1. Used for syphilis detection, syphilisRPR,TRUST,VDRLscreening and detection test, etc., for Treponema pallidum non-specific antibody qualitative and semi-quantitative detection.
2. Horizontal state speed meets100r/min±2 r/min(RPR)or180r/min±2r/min(VDRL)
3. The time control accuracy meets the requirements of±1s/min, and the maximum time can reach15min.
4. The digital electronic control unit can presetthe fixed reaction program for the RPR/TRUST and VDRL tests.
5. The horizontal sample tray shall be equipped with clamping grooves for fixing the reaction plate to avoid slipping out of the horizontal rotator during the experiment.
6. Speed adjustment and time adjustment mode should be button type, digital display status display, silent type, digital inspection time more accurate.
Technical parameters of digital horizontal mixer:
1. Operation mode: horizontal circle
2. Turnover diameter:22mm
3. Allowable load:1Kg
4. Speed range:20-230rpm
5. Time setting range:0-999min
6. Operating mode: timed/continuous
7. Input voltage (frequency):AC100-240V(50/60Hz)
8. Input power:10W
9. Working surface size:310× 219mm(common type)
10. Allowable ambient temperature: 5 - 50 ℃
11. Allowable relative humidity:80%
12. Outline size:320× 315× 120mm
13. Net weight:4.6Kg
15. Transparent cover (optional)
Digital horizontal mixer price, digital horizontal mixer quotation, Shanghai digital horizontal mixer, Beijing digital horizontal mixer, Nanjing digital horizontal mixer, Hangzhou digital horizontal mixer
Shanghai JingpaiJipad-IVXConfigurationparets name quantity host transparent cover 1with a clear cover Original imported motor (built-in) 1set Silicone gasket (white) of1 power cord 1piece Manual, warranty card, certificate of conformity 1part Original carton pearl cotton packaging some - Name(chinese)
